ScanGauge HD – Touchscreen Truck Monitor & Scan Tool

ScanGauge HD colour touchscreen showing live engine gauges in a heavy diesel truck

SCANGAUGE HD OVERVIEW

Know What Your Truck Is Doing — In Real Time

Main features:

Compatible with both J1939 & J1708 protocols
15+ live digital gauges — display up to 9 simultaneously
X-Gauge™ programmable gauges
5 trip computers — distance, fuel, cost, speed and more
Real-time fuel economy — L/100km, cost per km, litres per hour
Heavy diesel fault code reader — read and clear codes

Special features:

Multi-colour capacitive touch display
Up to 9 live gauges with pages of favourites
Automatic X-Gauge™ configuration — no manual code entry
Visual & audible alarms on any gauge
Free Wi-Fi firmware updates — no cables required

Compatible with most heavy diesel trucks, buses, agricultural and earthmoving equipment using J1939 and J1708 protocols. These vehicles have a round 6-pin or 9-pin diagnostic port. Not sure? Contact us to check compatibility with your vehicle or fleet. Check heavy diesel compatibility →

MONITOR ALL VITALS

Six tools. One device. Plug & play.

Whether you're an owner-operator watching oil pressure and trans temp on a long haul, a fleet manager keeping on top of fuel costs, or running machinery on site — the ScanGauge HD puts the readings your factory dash doesn't show right in front of you, on a clear colour touchscreen.

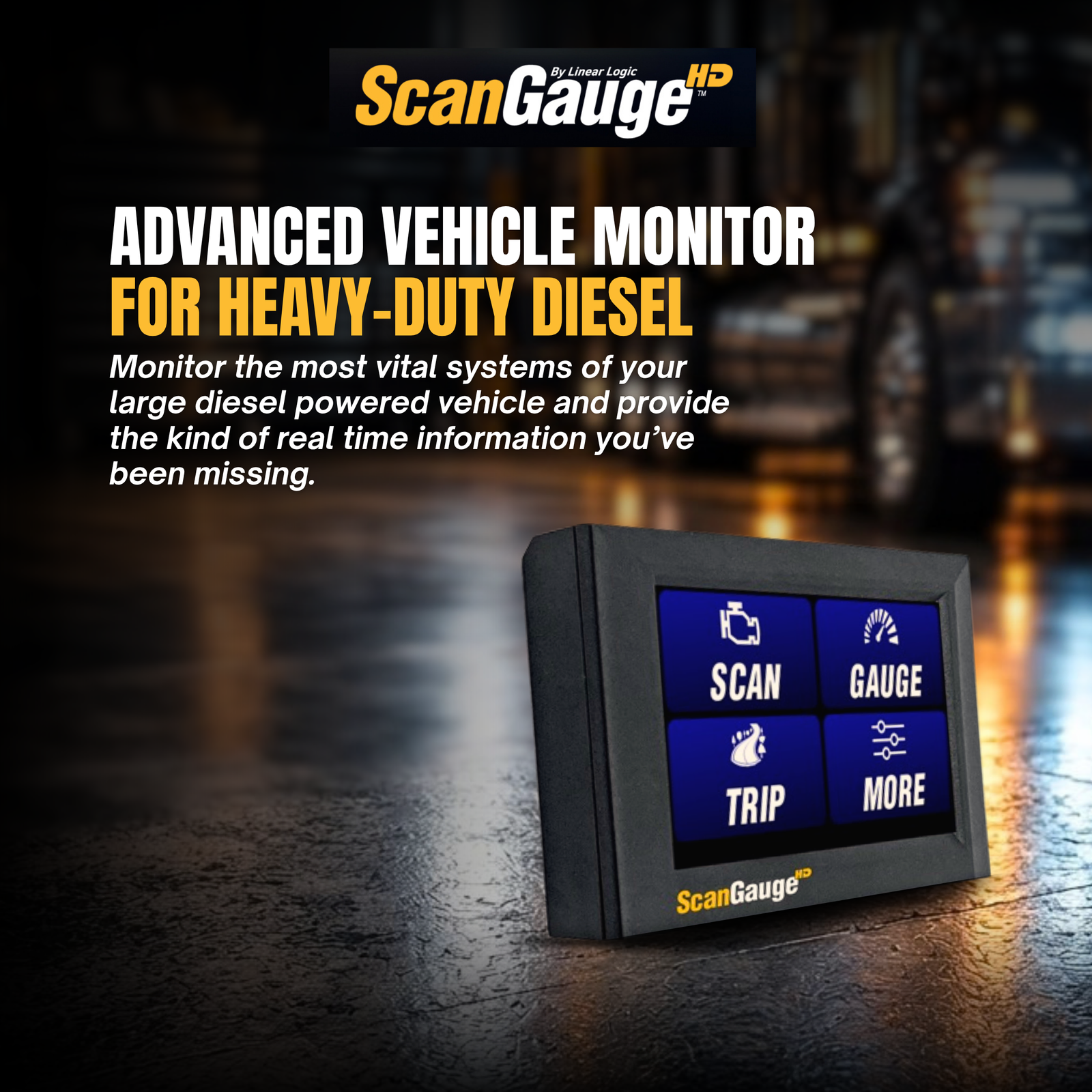

ScanGauge HD all-in-one heavy diesel monitor with live gauges, trip computers and fault code reader

15+ Live Engine Gauges

Display up to 9 simultaneously — coolant temp, oil pressure, RPM, boost, fuel economy, battery voltage and more. Fully customisable layout.

X-Gauge™ Programmable Gauges

Go beyond the standard gauges — add transmission temp, EGT, DPF soot load and other vehicle-specific parameters tailored to your truck.

5 Trip Computers

Track fuel cost, distance, average speed, litres used and range-to-empty across five independent logs. Data retained even when unplugged.

Heavy Diesel Fault Code Reader

See active fault codes the moment a warning light comes on — on the highway, on site or in the paddock. Know whether it's safe to keep going before you call for help.

Alerts & Alarms

Set custom high and low alerts on any gauge — coolant temp, oil pressure, boost and more. Get warned before a small issue becomes a big repair bill.

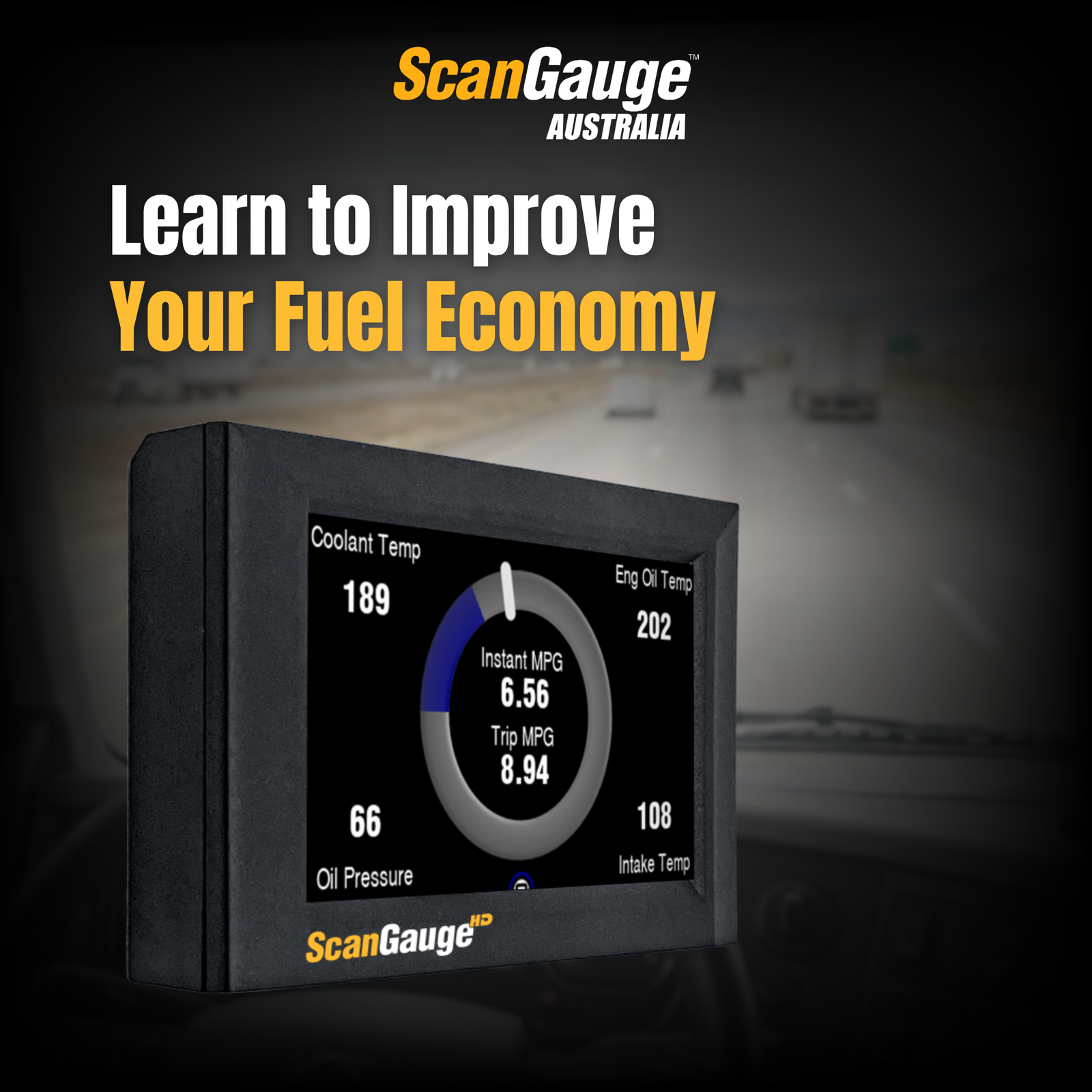

Real-Time Fuel Economy

Instant L/100km, average economy, cost per kilometre, litres per hour and trip fuel cost. See exactly where your fuel money goes.

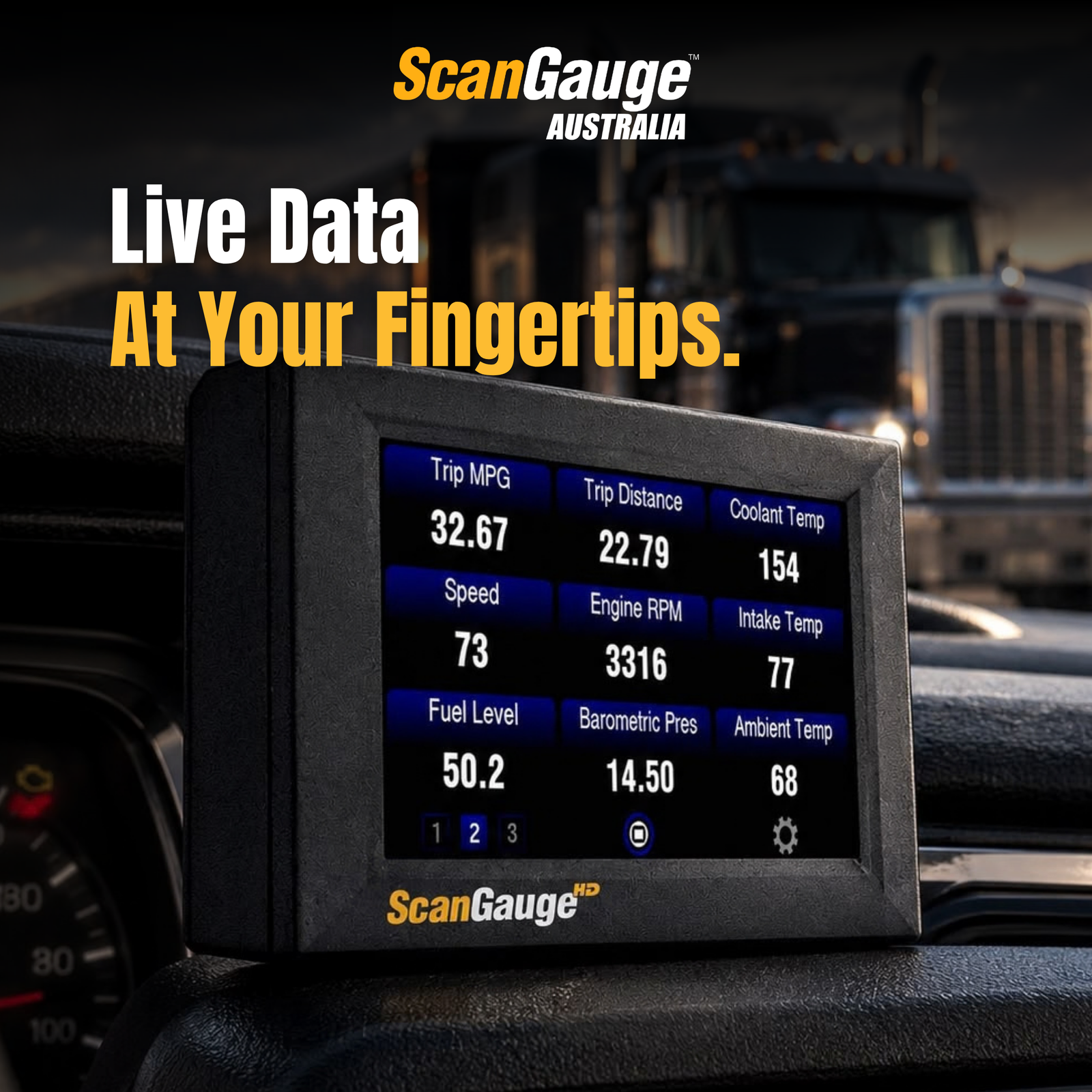

ScanGauge HD displaying live heavy diesel engine gauges

LIVE ENGINE GAUGES

Monitor engine vitals and every reading your truck can share

More than 15 built-in digital gauges — select up to 9 live gauges to display simultaneously. All data is pulled live from your vehicle's ECU as you drive. Switch between metric and imperial — km, litres, Celsius and kPa all supported.

Code	Gauge	Code	Gauge
LHK / KPL	Litres per 100km / Km per Litre	CWT	Coolant Temperature
AVG	Average Fuel Economy	OIL	Oil Pressure
LPH	Litres Per Hour	TFT	Transmission Fluid Temperature
TFC	Trip Fuel Cost	BST	Boost
CPM	Cost Per Kilometre	RPM	Engine RPM
KPH	Speed (km/h)	LOD	Engine Load
VLT	Battery Voltage	TPS	Throttle Position
FIA / CIA	Intake Air Temperature	HP	Horsepower

* Available parameters vary by vehicle make and model. If a parameter is not supported by your vehicle's ECU, no data will be shown for that gauge.

X-GAUGE™ SYSTEM

Go beyond standard gauges — monitor what really matters for your rig

Hauling heavy? Running machinery hard on site? The standard gauges don't tell the full story. X-Gauge is ScanGauge's exclusive programmable gauge system — tap into manufacturer-specific data channels and display them alongside your standard gauges.

The ScanGauge HD can automatically scan your vehicle for available X-Gauges and display them alongside your standard gauges — no manual code entry needed.

ScanGauge HD X-Gauge system showing transmission temp, EGT and DPF gauges

Popular X-Gauge parameters include:

Transmission fluid temp · Torque converter temp · Exhaust gas temp (EGT) · DPF soot load % · DPF differential pressure · Engine oil temp · Fuel rail pressure · and many more

Trans Fluid Temp Torque Converter Temp EGT DPF Soot Load % DPF Diff Pressure Engine Oil Temp Fuel Rail Pressure

Browse all X-Gauge codes for your vehicle →

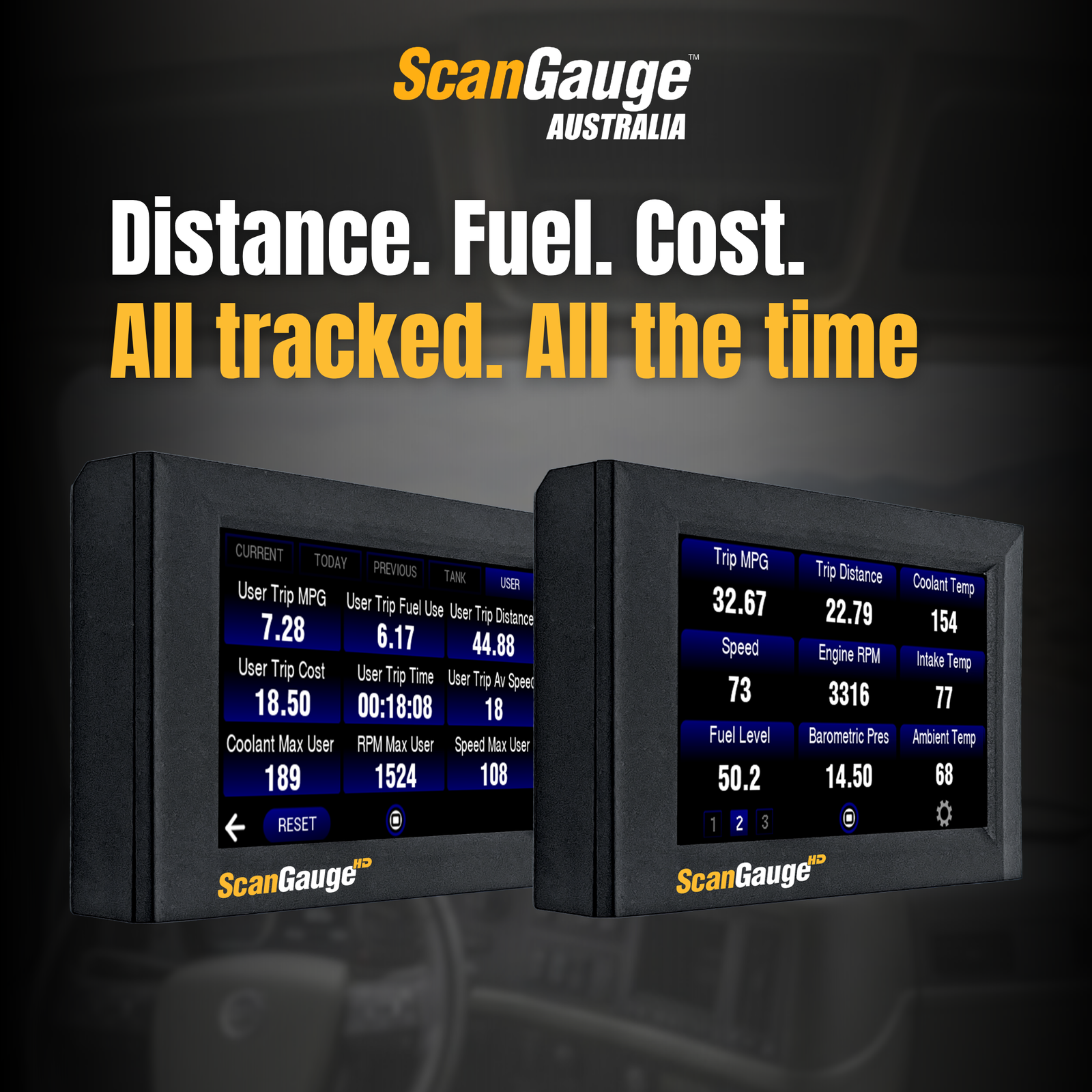

TRIP COMPUTERS

Five trip computers — always logging, always ready

With five built-in trip computers, the ScanGauge keeps track of everything from fuel cost to distance travelled and everything in between. Data is stored on the ScanGauge and retained even when the power is disconnected. Each trip computer starts automatically and the information is available any time during the trip.

Time & Distance (×3 logs)

Current Trip, Today and Previous Day
Kilometres driven & hours driven
Fuel used and trip fuel cost
Average and max speed
Max RPM and max coolant temp
Fuel economy (L/100km)

Tank Computers (×2 logs)

Current Tank and Tank to Empty
Fuel used on current tank
Distance to empty
Hours to empty
Average economy for current tank
Total fuel cost for current tank

HD DIAGNOSTIC SCAN TOOL

Know what your engine is telling you — when it matters most

The ScanGauge HD checks for Diagnostic Trouble Codes (DTCs) and, if any are found, shows how many there are and the codes themselves.

Data captured when the code was set can be recalled to help troubleshoot the problem (was the engine hot or cold, speed high or low, etc.). Once the issue is fixed, the ScanGauge HD can clear the codes and turn off the warning light.

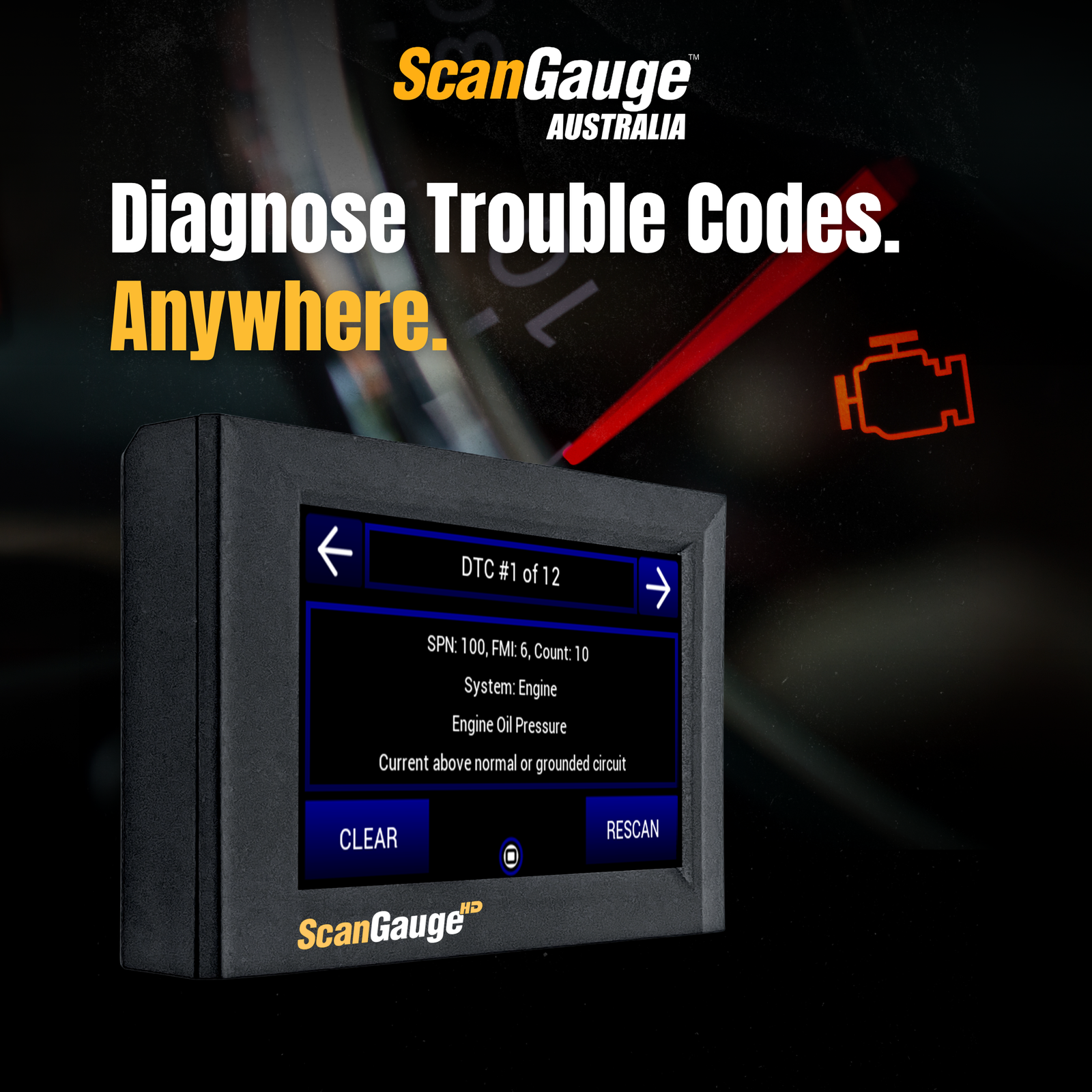

ScanGauge HD heavy diesel scan tool reading and clearing fault codes

ScanGauge HD plugs into a truck's J1939 or J1708 diagnostic port in minutes

INSTALLATION

Up and running in under five minutes — no tools required

Plugs directly into your truck's J1939 or J1708 diagnostic port and powers itself from it. No wiring, no calibration, no tools required.

IN THE BOX

What's included

• ScanGauge HD unit (latest Australian firmware) • J1939 9-pin cable • J1708 6-pin adapter • Window mount • User manual

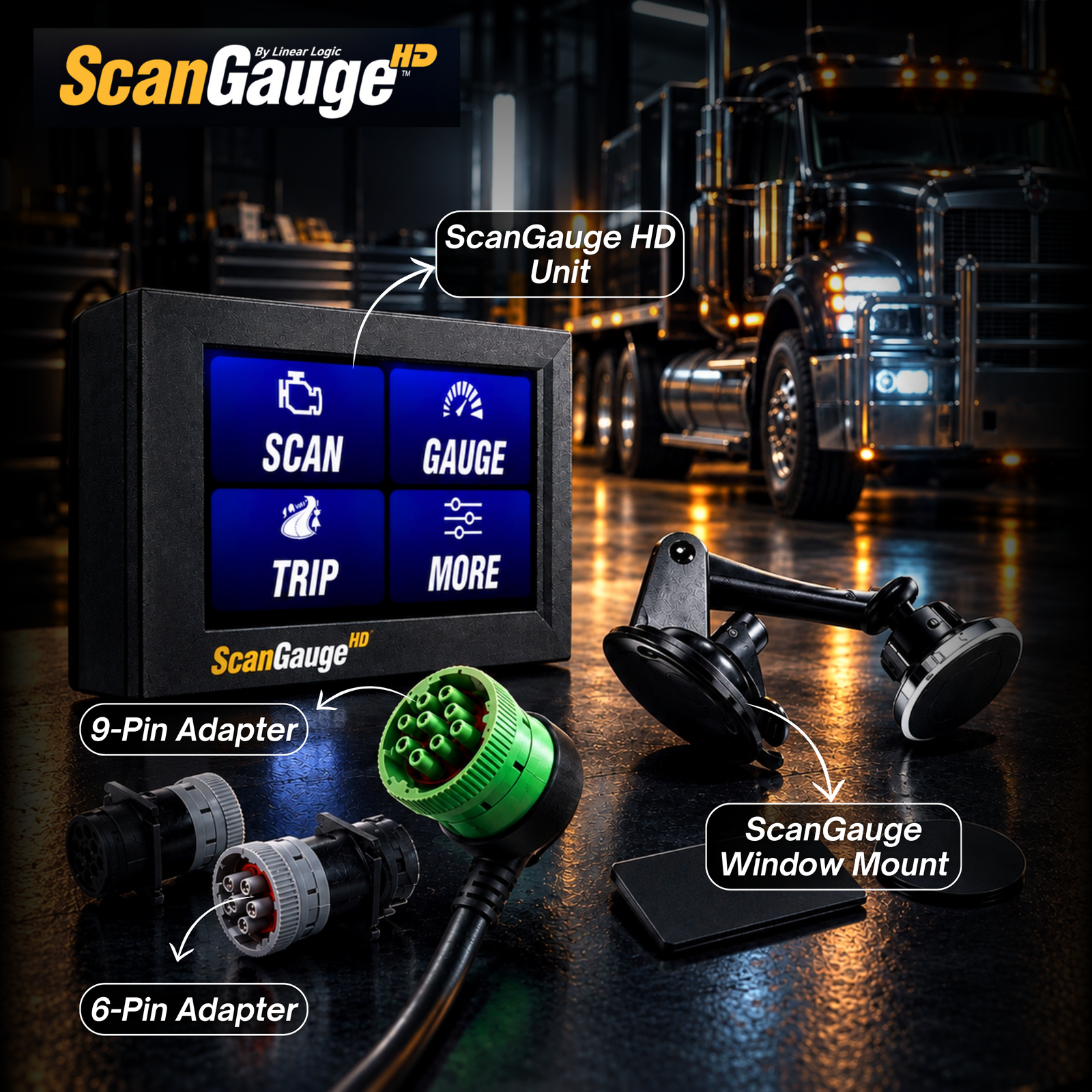

ScanGauge HD box contents: unit, J1939 cable, J1708 adapter, window mount and user manual

ScanGauge-HD Key Features

Display

Colour capacitive touchscreen

Gauges on screen

Up to 9 at once, with multiple pages of favourites

Built-in gauges

15+ heavy diesel engine gauges

X-Gauges

✔ Automatic scan — no manual code entry

Alarms

✔ Audible & visual, on any gauge

Fault codes

Read & clear, with data captured when the code was set

Trip computers

5 (3 time & distance, 2 tank)

Compatibility

Heavy diesel — J1939 (9-pin) & J1708 (6-pin)

Connection

J1939 9-pin cable + J1708 6-pin adapter — powered by the diagnostic port

Mounting

Window mount included

Firmware updates

✔ Free via Wi-Fi

Units

Metric & imperial

Dimensions

12.7 × 8.1 × 2.55 cm

Warranty

3 years (Australia)

Australian firmware pre-installedMade in the USALocal Australian support

COMPATIBILITY

Will ScanGauge work on my truck?

ScanGauge heavy diesel models work with most trucks, buses, agricultural and earthmoving equipment from 1990 onwards that use the J1939 or J1708 diagnostic protocols.

Check your diagnostic port

Look under the dash for a round diagnostic connector:

9-pin round port — J1939 (most trucks from the late 2000s onwards)
6-pin round port — J1708 (mainly older trucks)

Both are supported.

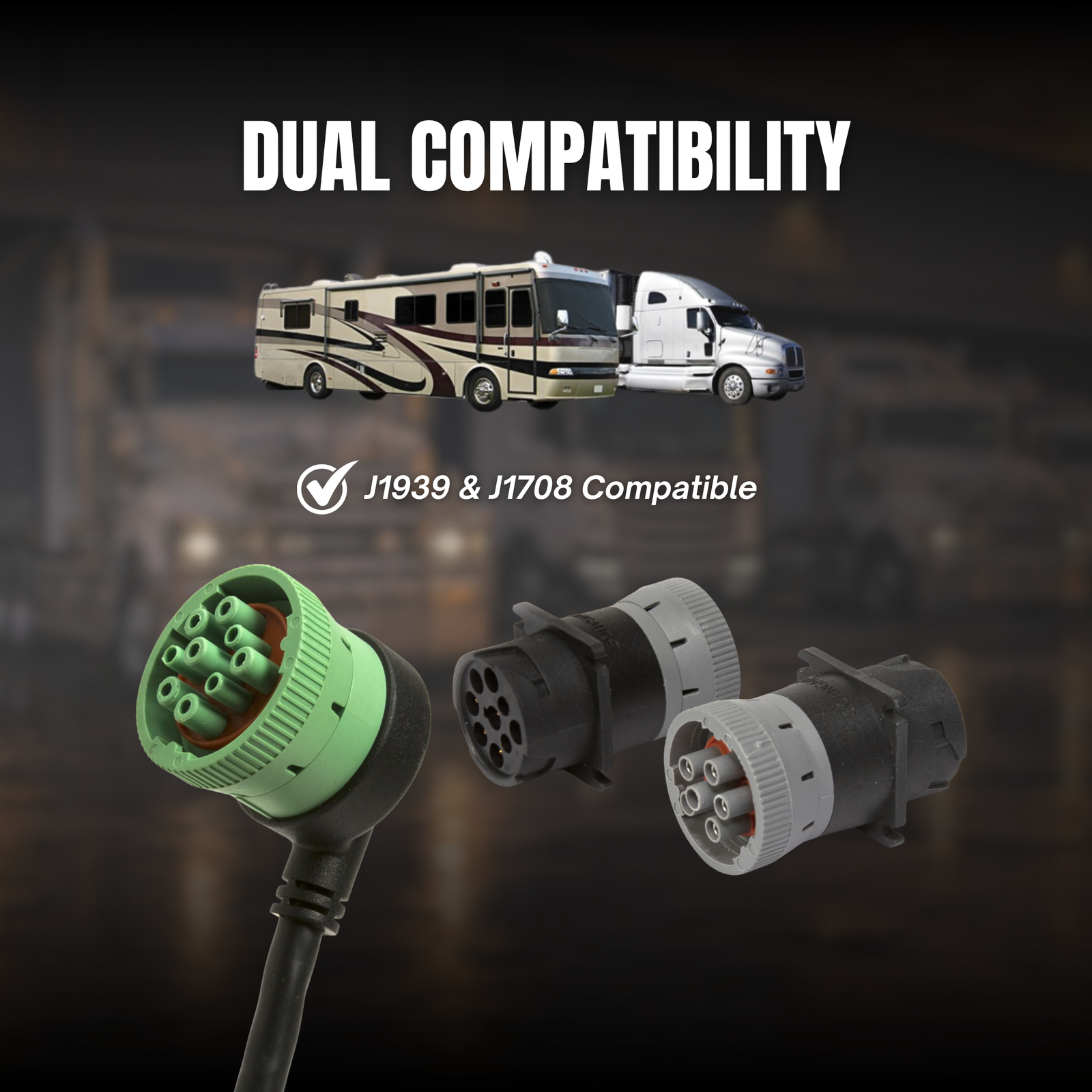

J1939 9-pin and J1708 6-pin round diagnostic ports on heavy diesel trucks

Truck has a 16-pin port instead? Many medium trucks such as Isuzu and Hino use a 16-pin port — these work with the ScanGauge 3 and our 24V OBD extension cable. Some other trucks use a 16-pin connector for J1939 and need our 9-pin to 16-pin adapter instead. Not sure which you have? Contact us and we'll confirm before you buy.
