ScanGauge-D
For Heavy Diesel Trucks & Earth Moving Equipment
SCANGAUGE-D OVERVIEW
Know What's Happening Under Your Bonnet — In Real Time
Main features:
- Compatible with both J1939 & J1708 protocols
- 15+ live digital gauges — display 4 simultaneously
- X-Gauge™ programmable gauges
- 5 trip computers — distance, fuel, cost, speed and more
- Performance Monitor
- Real-time fuel economy — L/100km, cost per km, litres per hour
- OBD fault code reader — read and clear codes instantly
Compatible with most petrol, diesel and hybrid vehicles — sedans, SUVs, utes, vans and light commercials that are OBD-II compliant. Most Australian vehicles manufactured from 2006 onward are supported. Check full compatibility →
MONITOR ALL VITALS
Six tools. One device. Plug & play.
With the ScanGaugeD, you can monitor the most vital systems of your large diesel powered vehicle and provide the kind of real time information you’ve been missing. Features include more than 15 built-in digital gauges, 5 Trip Computers and an easy-to-use ScanTool that shows trouble codes — all in a compact design that installs in minutes.
15+ Live OBD2 Gauges
Display 4 simultaneously — water temp, RPM, boost, fuel economy, battery voltage, throttle position and more. Fully customisable layout
X-Gauge™ Programmable Gauges
Go beyond standard OBD2 — add transmission temp, EGT, DPF soot load and other vehicle-specific parameters tailored to your make and model.
5 Trip Computers
Track fuel cost, distance, average speed, litres used and range-to-empty across five independent logs. Data retained even when unplugged.
OBD Code Reader
Know what your engine is telling you — before or after the warning light appears. Critical when you're remote, off-road or in limp mode far from help.
Performance Monitor
Measure 0–100 km/h runs, quarter-mile times and braking distances. Save and recall runs to track improvements over time.
Real-Time Fuel Economy
Instant L/100km, average economy, cost per kilometre, litres per hour and trip fuel cost. Proven to cut fuel spend on every drive.

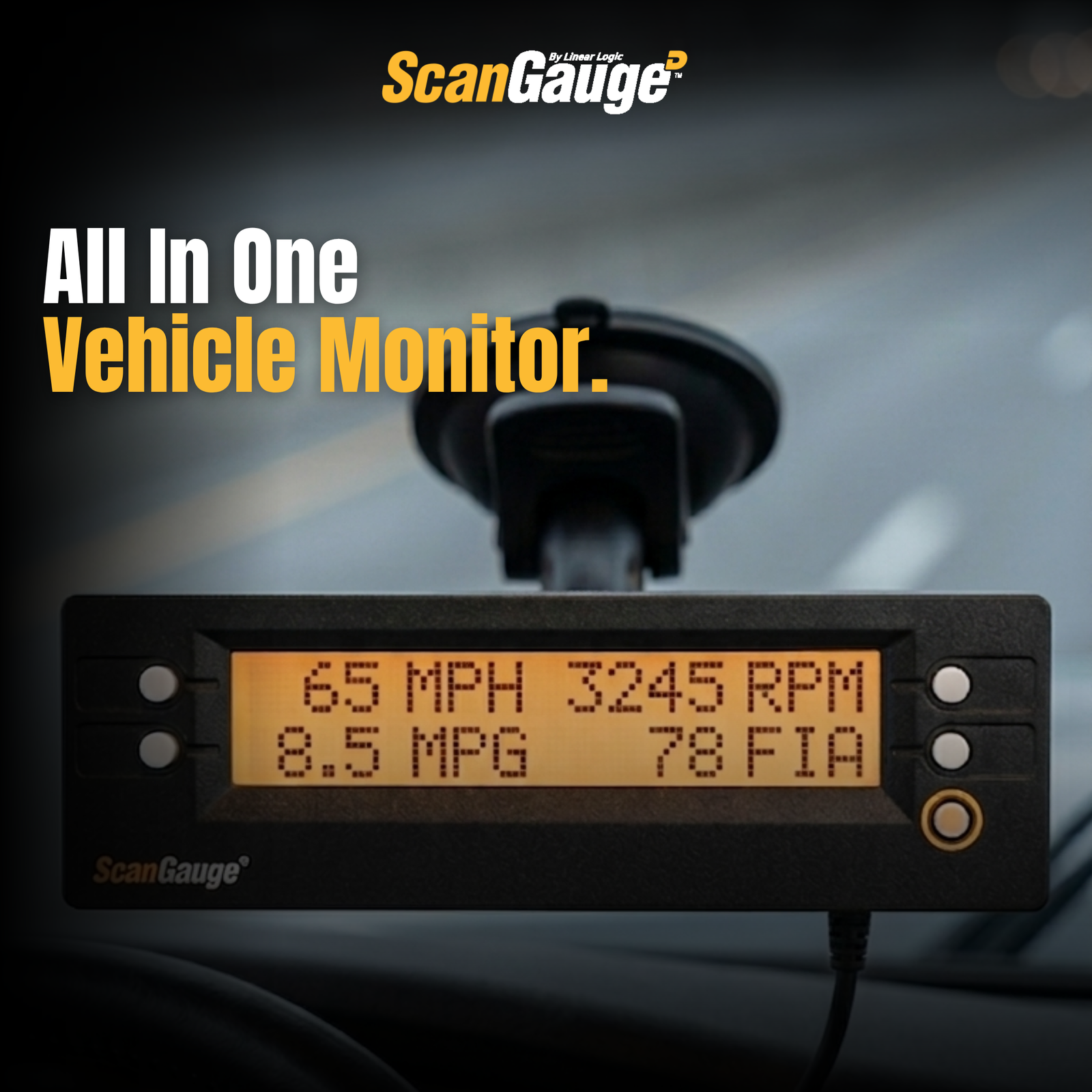

LIVE OBD2 GAUGES
Monitor engine vitals and every reading your vehicle can share
More than 15 built-in digital gauges — select any four to display simultaneously. All data is pulled live from your vehicle's ECU as you drive. Switch between metric and imperial — km, litres, Celsius and kPa all supported.
| Code | Code | Gauge | |
|---|---|---|---|
| LHK / KPL | Litres per 100km / Km per Litre | CWT | Coolant Temperature |
| AVG | Average Fuel Economy | RPM | Engine RPM |
| LPH | Litres Per Hour | KPH | Speed (km/h) |
| TFC | Trip Fuel Cost | VLT | Battery Voltage |
| CPM | Cost Per Kilometre | TPS | Throttle Position |
| MAP / BST | Manifold Pressure / Boost | LOD | Engine Load |
| FIA / CIA | Intake Air Temperature | IGN | Ignition Timing |
| FPR | Fuel Pressure | HPR | Horsepower |
* Available parameters vary by vehicle make and model. If a parameter is not supported by your vehicle's ECU, no data will be shown for that gauge.
X-GAUGE™ SYSTEM
Go beyond standard gauges — monitor what really matters for your build
Discover available vehicle specific gauges and expand the functionality of your ScanGauge with X-GAUGE™. The ScanGaugeD has the ability to record your vehicle’s PID data. With the available PIDs, we can assemble a vehicle specific X-Gauge list for you to expanse the functional of your ScanGauge.
Popular X-Gauge parameters include:
Transmission fluid temp · Torque converter temp · Exhaust gas temp (EGT) · DPF soot load % · DPF differential pressure · Engine oil temp · Fuel rail pressure · Transfer case temp · and many more
TRIP COMPUTERS
Five trip computers — always logging, always ready
With five built-in trip computers, the ScanGauge can keep track of everything from fuel cost to distance traveled and everything in between. Data is stored on the ScanGauge and is retained even when the power is disconnected. Each trip computer starts automatically and information is available anytime during the trip.
- Current Trip, Today and Previous Day
- Kilometres driven & hours driven
- Fuel used and trip fuel cost
- Average and max speed
- Max RPM and max coolant temp
- Fuel economy (L/100km)
- Current Tank and Tank to Empty
- Fuel used on current tank
- Distance to empty
- Hours to empty
- Average economy for current tank
- Total fuel cost for current tank

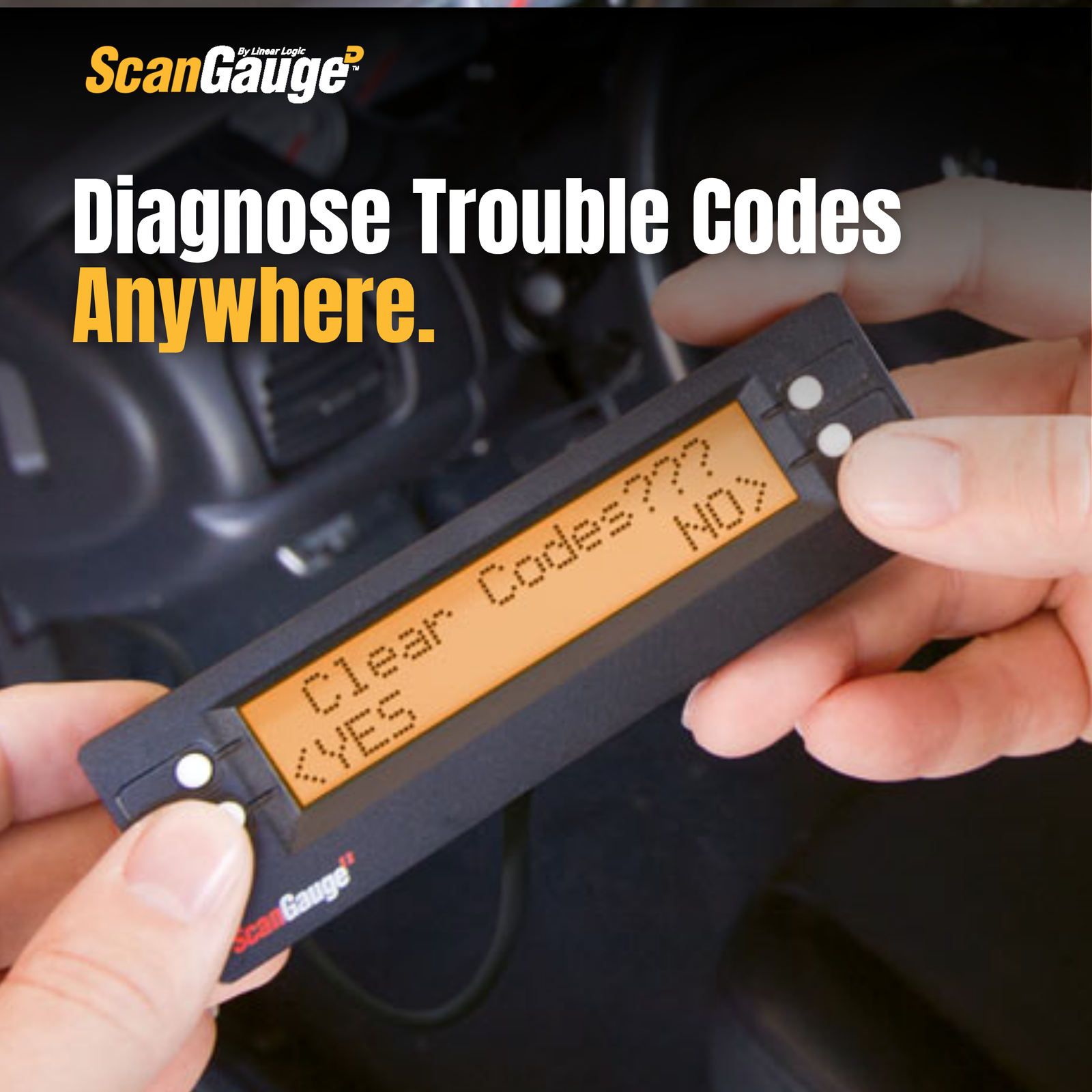

HD DIAGNOSTIC SCAN TOOL
Know what your engine is telling you — when it matters most
The ScanGaugeD can check for Diagnostic Trouble Codes (DTCs) and if found, can display how many there are and the Trouble Codes themselves. Using the internet or repair manuals, these can be translated to the failed component and repairs can be made.
Data captured when the Trouble Code was set can be recalled to help troubleshoot the problems (was the temperature hot or cold, speed high or low, etc.). The ScanGaugeD can be used to clear the trouble codes and data which will turn off the warning light.
PERFORMANCE MONITOR
Track performance. Prove the gains.
The ScanGaugeD features the exclusive Performance Monitor™ for real-time performance measurements. The Performance Monitor gives you the ability to track your vehicle’s performance over short periods of time, distance and accelerationMonitor various aspects of your vehicle’s performance such as:
- Determine your vehicle’s 0-60 time.
- Measure your vehicle’s braking performance.
- Save and recall performance runs.
- Monitor specific Digital Gauges.
- and much more…
INSTALLATION
Up and running in under five minutes — no tools required
Plugs directly into your vehicle's OBD2 diagnostic port under the dash and powers itself from it. No wiring, no calibration, no tools required
IN THE BOX
What's included
• ScanGauge 2 unit (Latest Australian firmware) • User manual • 1.8m OBD2 cable • Quick-start guide • Velcro mounting tape
HEAVY DIESEL VEHICLES
Compatible with J1939 and J1708 Protocols
The ScanGauge-KR is compatible with almost all vehicles that use J1939 (9-pin) or J1708 (6-pin) OBD protocol. Mainly found in commercial heavy diesel vehicles, trucks, rigs, movers etc from 1990 and newer.
- Designed for heavy diesel trucks and buses
- Compatible with J1939 protocol — 9-pin round connector
- Suits most over-the-road trucks and semi-trailers
- Same gauge, trip computer and scan tool functionality
- Designed for professional truck drivers
- Compatible with J1939 and J1708 — 9-pin and 6-pin connectors
- Includes real-time profit/loss tracking
- Built for long-haul and fleet operators
Running a heavy diesel vehicle? View the ScanGauge D and ScanGauge KR →
| SKU | SGDFFP |
| Barcode # | 788006006133 |
| Brand | ScanGauge-D |
| Unit Of Measure | ea |
